Customized 1 Channel Machine Vision LED Lighting Multiple Pattern Available

Brand Name : OPT

Model Number : OPT-SLS03

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Product name : Structured Lights

Model : OPT-SLS03

Color : Blue/White/Green/Red

Output : W: 1A/3.5W R: 1A/2.6W B: 1A/3.5W G: 1A/3.5W

Channel : 1

Housing Size（Length） : 77.5mm

Housing Size（Diameter） : 46mm

Recommended Controller : OPT-DPA2005E

Contact Now

Customized Machine Vision LED Lighting Structured Lights Multiple Pattern Available OPT-SLS Series OPT-SLS03

Product Features

◆ Be able to be perpendicular to the measured surface

◆ The Machine Vision LED Lighting Structured Lights OPT-SLS series can be customizable and applied to inspect the product flatness, to measure the electronic components of consumer electronic products and to pick and place with robot. It can be also used for 3-Dimensionl analysis.

◆ 1 Channel and 4 colors (white/red/blue/green) are available; the output of light source in white color is 1A/3.5W; the output of red light source is ◆1A/2.6W; the output of blue light source is 1A/3.5W; the output of green light source is 1A/3.5W.

◆ The diameter of housing size is 46mm; the length of housing is 77.5mm.

◆ Recommended lighting source controller is OPT-DPA2005E which is digital current controller for spot lights and designed by OPT.

Application Cases

◆ Product flatness inspection

◆ Pick and place with robot

 Specifications

Product name	Structured Lights
Model	OPT-SLS03
Color	Blue/Red/White/Green
Output	W: 1A/3.5W R: 1A/2.6W B: 1A/3.5W G: 1A/3.5W
Channels	1
Housing Size(Length)	77.5mm
Housing Size(Diameter)	46mm
Recommended Controller	OPT-DPA2005E
Application 1	Product flatness inspection
Application 2	Pick and place with robot
Application 3	3-Dimensionl analysis

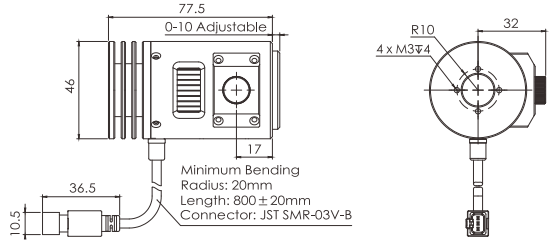

Dimensions (mm)

OPT-SLS03

Product Details

Customized 1 Channel Machine Vision LED Lighting Multiple Pattern Available

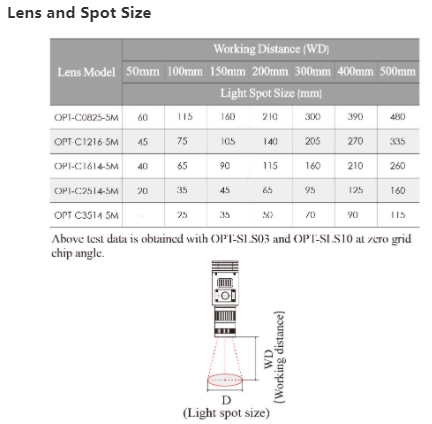

Note: The test data is obtained at zero grid chip angle. It is for reference only.

Customized 1 Channel Machine Vision LED Lighting Multiple Pattern Available
