24V 220mm Length Machine Vision Backlight For 3C Products OCR

Brand Name : OPT

Model Number : OPT-FLA220210K

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Model : OPT-FLA220210K

Product name : Machine Vision R/G/B/W Backlight With Centre Hole

Color : Green/White/Blue/Red

Output : W: 24V/47.5W R: 24V/42.4W B: 24V/46.1W G: 24V/30.3W

Housing Size（Length） : 220mm

Emitting Size（Length） : 194mm

Application 1 : Positioning of product sorting

Application 2 : Defects detection in printing industry

Contact Now

24V 220mm Length 194mm Emitting Length Machine Vision Backlight With Centre Hole B/W/R/G/ Colors OPT-FLA-K Series OPT-FLA220210K

Product Features

◆ OPT-FLA-K Series OPT-FLA220210K machine vision backlight with centre hole will provide edge lit backlight type for choosing.

◆ OPT-FLA220210K backlight with centre hole have high luminosity and high uniformity and is the best choice for large-size back lighting.

Application Cases

◆ Defects detection ideal for the printing industry

◆ OCR(Optical character recognition) for 3C elctronic product

◆ Package cosmetic detection

◆ Electronic components identification and position

Specifications

Model	OPT-FLA220210K
Color	Green/White/Blue/Red
Output	W: 24V/47.5W R: 24V/42.4W B: 24V/46.1W G: 24V/30.3W
Housing Size(Length)	220mm
Emitting Size(Length)	194mm
Application 1	Positioning of product sorting
Application 2	Defects detection in printing industry

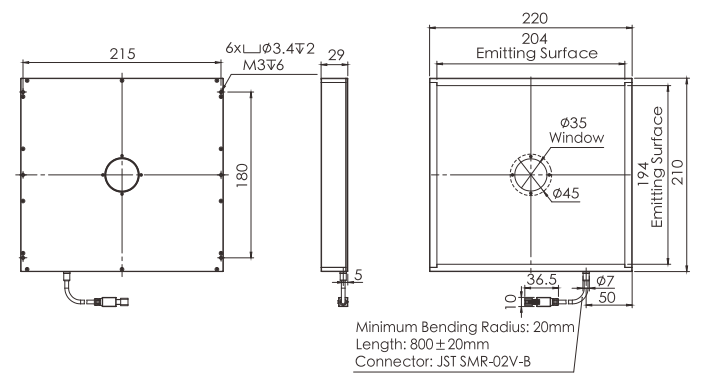

Dimensions (mm)

OPT-FLA220210K

Product Features

24V 220mm Length Machine Vision Backlight For 3C Products OCR

Application: Keycap positioning

24V 220mm Length Machine Vision Backlight For 3C Products OCR
