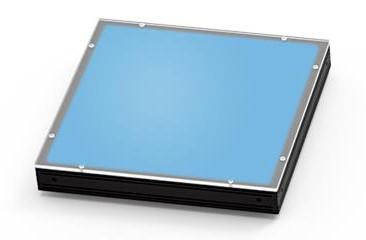

70mm Length Machine Vision Backlight

Brand Name : OPT

Model Number : OPT-FLP7070

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Model : OPT-FLP7070

Product name : Highly-Directional Backlights

Color : Red/White/Blue/Green

Output : W: 24V/6.3W R: 24V/4.7W B: 24V/4.6W G: 24V/5.3W

Channels : 1

Housing Size（Length） : 70

Recommended Controller : OPT-DPA2024E

Feature : Higher Relative Brightness

Contact Now

Machine Vision Backlight Highly-Directional Backlights Higher Relative Brightness OPT-FLP Series OPT-FLP7070

Product Features

◆ Suppresses the diffused light in a specific direction such that the camera sensor receives more light, and its relative brightness is higher than that of conventional backlight.

◆ Suppresses light diffraction, improves curve edge detection and image acquisition. Suitable for high precision and curved edge products.

Application Cases

◆ PCB inspection

◆ Geometric measurement

Specifications

Model	OPT-FLP7070
Color	Blue/Green/Red/White
Output	W: 24V/6.3W R: 24V/4.7W B: 24V/4.6W G: 24V/5.3W
Channels	1
Housing Size(Length)	70
Recommended Controller	OPT-DPA2024E

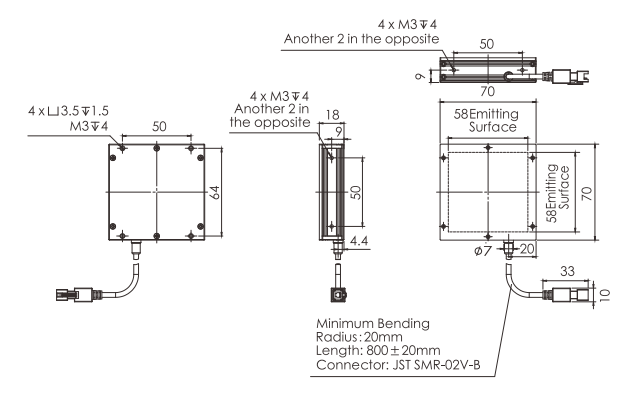

Dimensions (mm)

OPT-FLP7070

Features

70mm Length Machine Vision Backlight

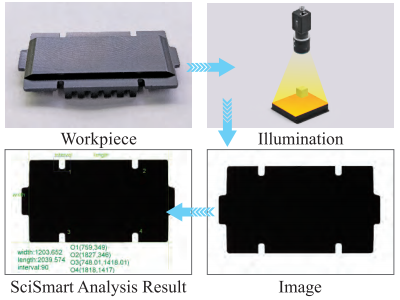

Applicaitons: Plastic part geometric measurement

70mm Length Machine Vision Backlight
